31" 4K UHD 2D MONITOR | B. Braun- Home

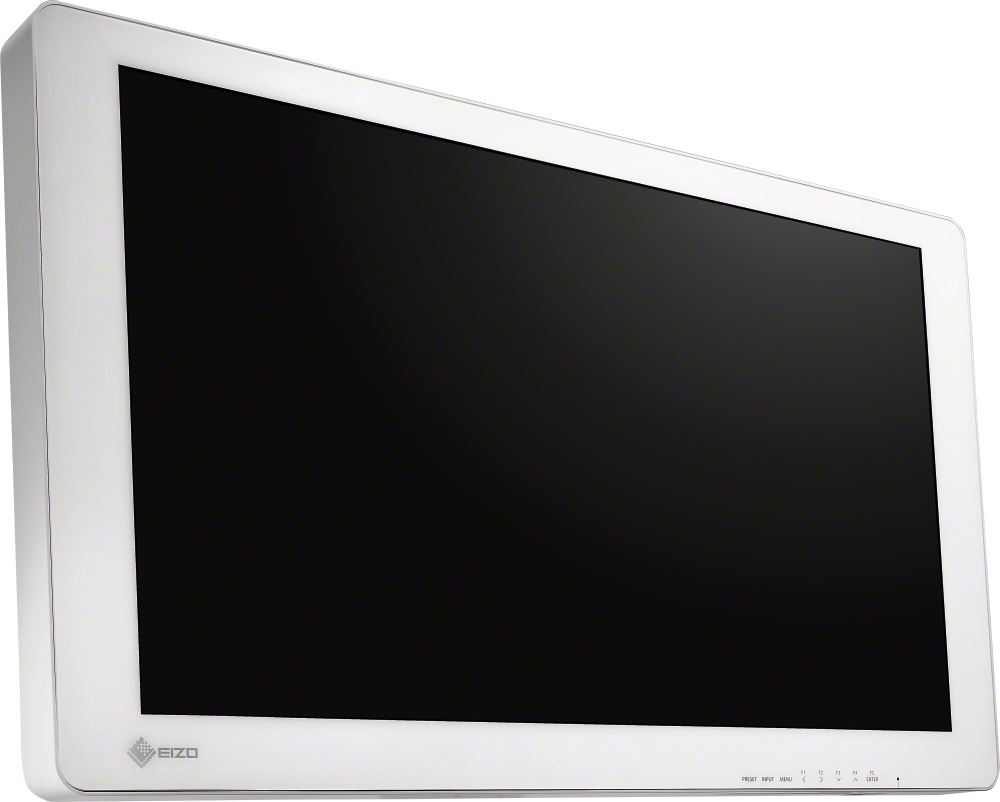

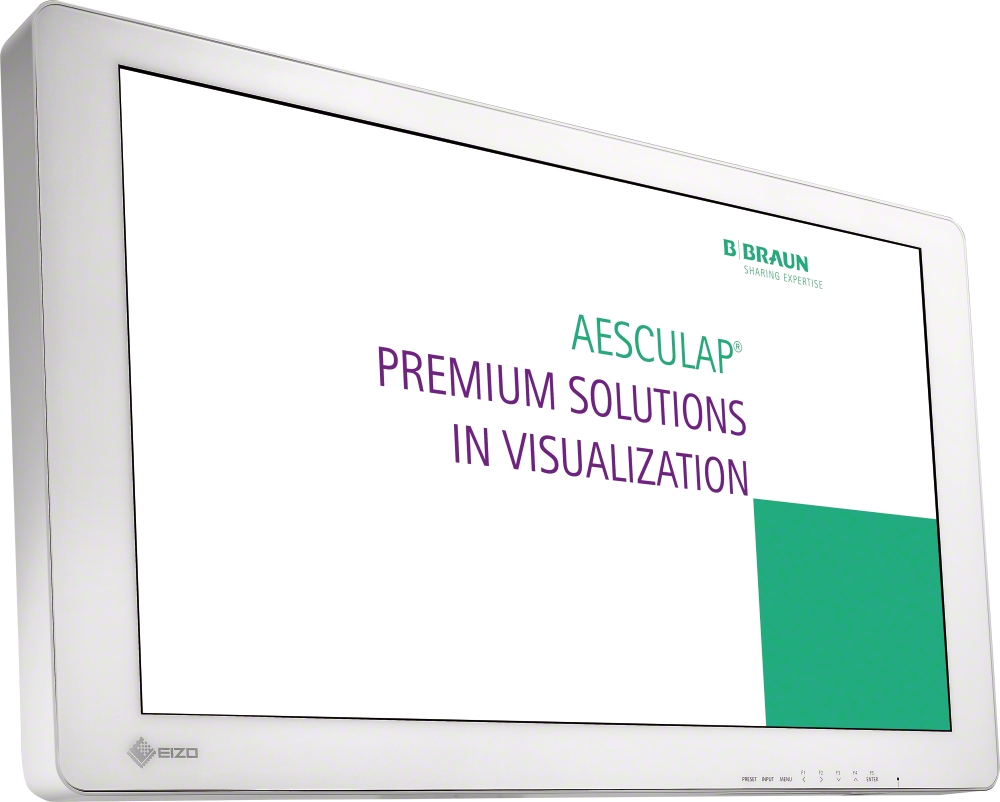

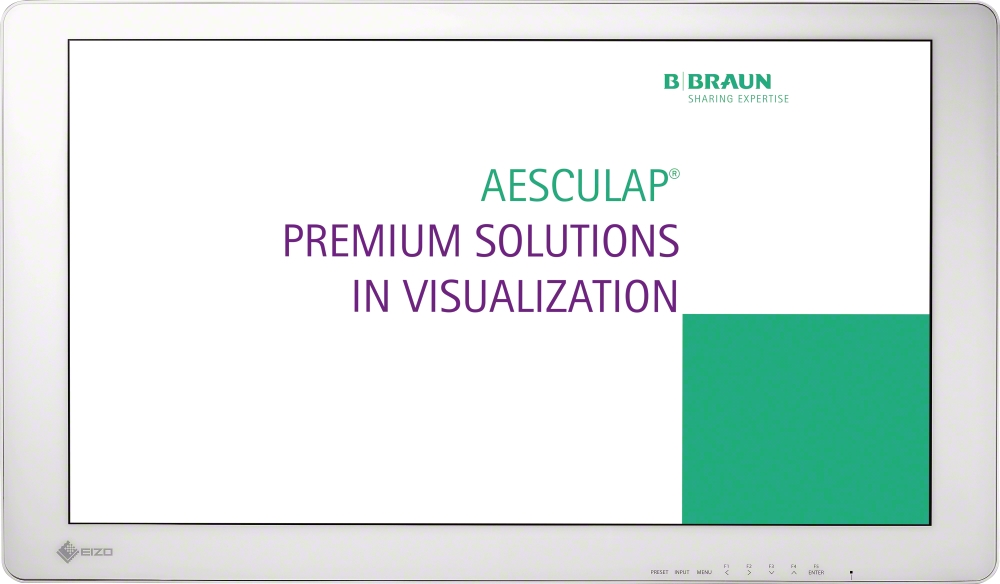

31" 4K UHD 2D MONITOR
PV62831" 4K UHD 2D MONITOR
- Product Search Type
- LCD Flat Screen
- Aesculap Product Groups
- Endoscopic Technology
- Product family
- Equipment
- Diagonal size (inch)
- 31" UHD 4K
- Power supply
- Input 100-240 V AC, 50/60 Hz, Output 24 V DC
- Maximum power consumption
- 146.0 VA
- Width (mm)
- 760.000 mm
- Height
- 444.000 mm
- Depth (mm)
- 87.000 mm
- Weight
- 11.20 kg
- Panel quality
- with anti-reflection safety...
- Viewable diagonal (Inch)
- 31"
- Brightness (cd/m²)
- 350
- Resolution
- 3840 x 2160 pixel
- Viewing angle Horiz./Vert.
- 178°/178°
- Contrast ratio
- 1500:1
- Video signal inputs
- DVI (DVI-D), 3G-SDI, DisplayPort 1.2
- Control inputs
- RS-232 (DB-9)
- Power input
- 48V DC
- Menu control
- Yes
- Video signal output
- Quad Link 3G-SDI, DVI (DVI-D)
- to be used with (code)
- PV460, PV470, PV480, PV630, PV647, PV818, PV832
- Suitable stand
- PV818, PV810, PV800
- Discipline
- Urology, Gynaecology, Arthroscopy, Cardiac / Thoracic Surgery
- Safety class acc to EN 60601-1
- I
- Tested acc to norm
- EN 60601-1-2, EN 60601-1
- VESA-standard mounting system
- 200 mm, 100 mm
- Product contains Latex
- No
- Sterility
- non-sterile
- Disposable / Reusable
- reusable
